Pregy D135/M75 - 4 PS BA15

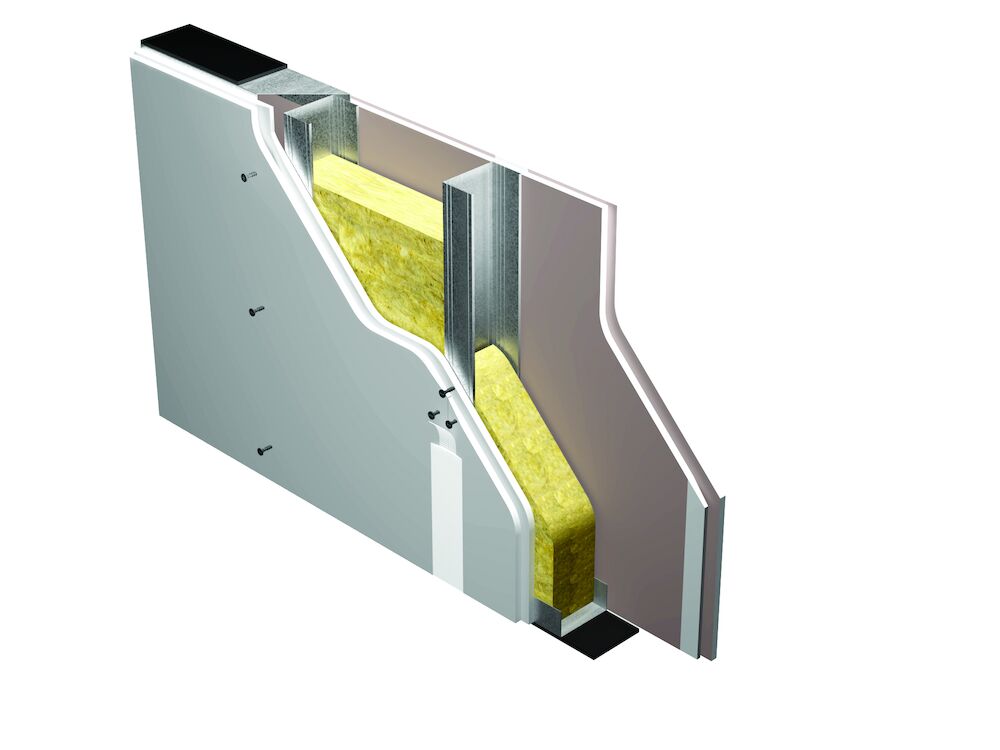

135 mm thick partition composed by 2 x 15 mm thick PregyPlac BA15 on each side, fixed to galvanized steel frame made of 40-75-40 mm horizontal U tracks and 47-74-50 mm vertical C studs.
Further Information
Sound insulation:
49 dB
Performance:
Standard
Nominal thickness:
135 mm
Fire report number:
Efectis n. 06-V-052 + Ext. 06/2
Fire class:
EI 60
Fire reaction:
A2-s1,d0
Fire resistance:
60 min
Maximum height:
6000 mm
Acoustic report:
Acoustic simulation
Applications:
- Interior partitions
- New buildings and renovations
