Pregy D200/M150 - 4 PS BA13

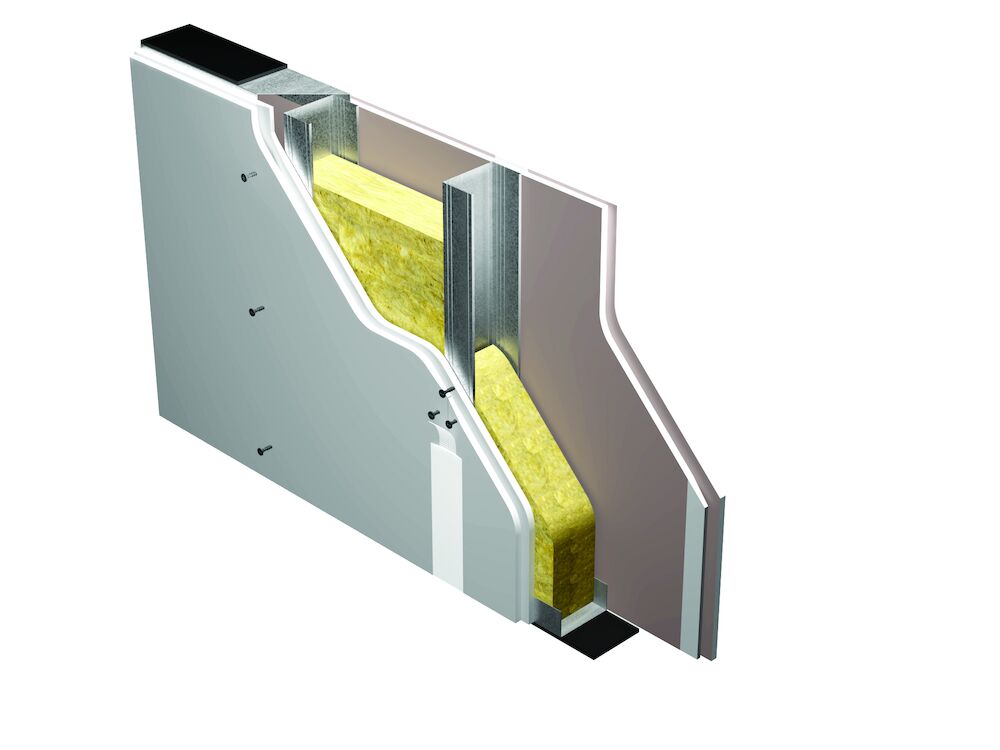

200 mm thick partition composed by 2 x 12,5 mm thick PregyPlac BA13 on each side, fixed to galvanized steel frame made of 150 mm horizontal U tracks (40-150-40 mm at the bottom and 80-150-80 mm at the top) and 47-149-50 mm vertical C studs. According to fire classification report, 3 mm gap per meter height must be ensured at the top of the partition.

Further Information

Sound insulation: 46 dB
Performance: Standard, Large-sized
Nominal thickness: 200 mm
Fire report number: Efectis n. 06-V-052 + Ext. 06/2
Fire class: EI 60
Fire reaction: A2-s1,d0
Fire resistance: 60 min
Maximum height: 9000 mm
Acoustic report: Acoustic simulation

Applications:

  • High partitions
  • New buildings and renovations
