Pregy D135/M75 - 2 PS BA15 + 2 LaDura BA15 - MW/60

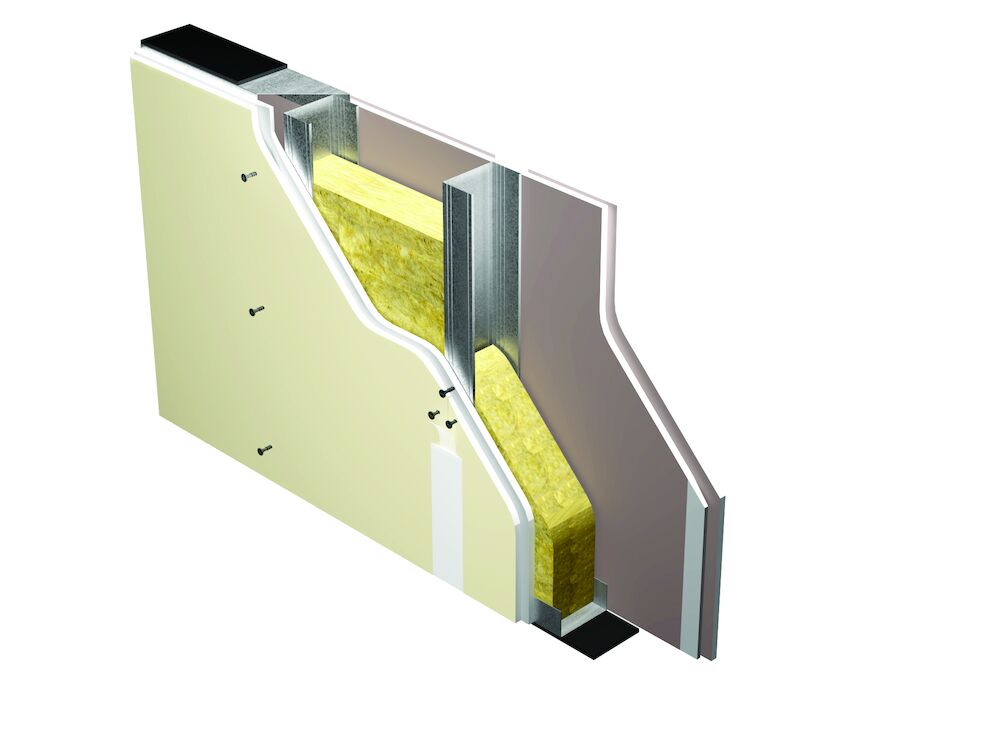

135 mm thick partition composed by 1 x 15 mm thick PregyPlac BA15 as inner layer and 1 x 15 mm thick LaDura Plus BA15 as outer layer on each side, fixed to galvanized steel frame made of 40-75-40 mm horizontal U tracks and 47-74-50 mm vertical C studs. Mineral wool 60 mm thick in the cavity.According to fire classification report, glass wool 45 mm thick, 12 kg/m³, is permitted as insulation.

Further Information

Sound insulation: 60 dB
Performance: Acoustic, Increased load capacity, Moisture, Mechanical strength, Impact & security
Nominal thickness: 135 mm
Insulation type: Mineral wool
Insulation thickness: 60 mm
Fire report number: Efectis n. 06-V-052 + Ext. 06/2 + 06/3
Fire class: EI 60
Fire reaction: A2-s1,d0
Fire resistance: 60 min
Maximum height: 6500 mm
Acoustic report: Acoustic simulation

Applications:

  • Interior partitions
  • New buildings and renovations
